Termékkód: MTP312650
A powerful engine with added performance: Athena is pleased to present the new big bore cylinder kit, developed for Yamaha YZ 450 F 2020-2022.

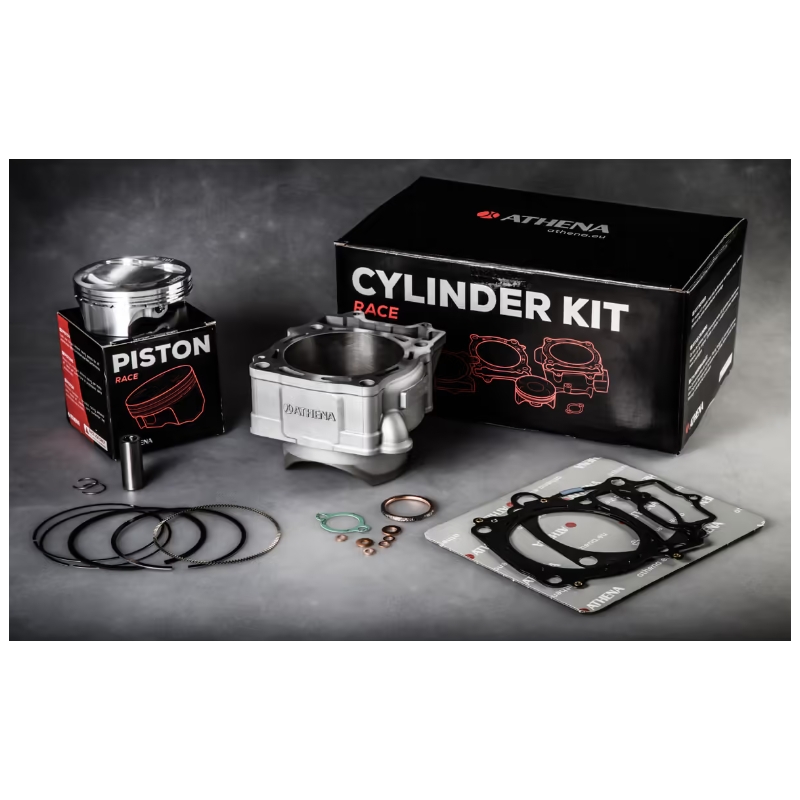

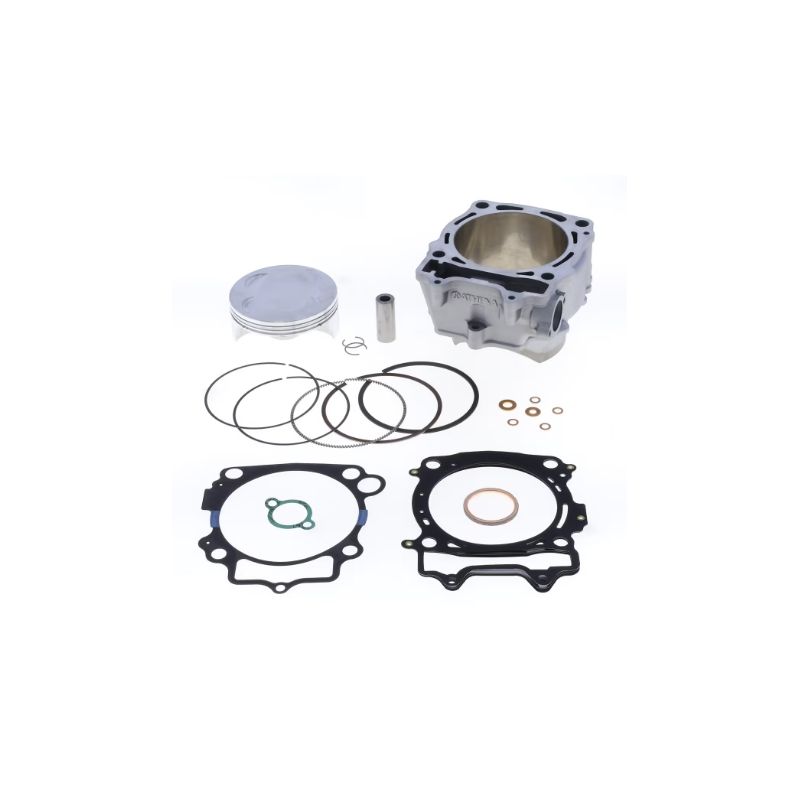

Completely designed in Italy by the R&D department, this kit is an aftermarket solution that significantly boosts torque and power without compromising the motorcycle’s efficiency and safety. The kit only includes Athena’s top-quality components: an aluminum cylinder with nickel-plated cylinder walls, a forged piston for maximum resistance, and a gasket set manufactured using a state-of-the-art process.
After several prototypes and quality checks, the cylinder kit was tested under extreme conditions on the Dyno and the track. The result is a reliable kit that delivers explosive power at low, medium and high revs.
The Big Bore cylinder kit for Yamaha YZ 450 F 2020/2022 can be installed without any crankcase machining despite the increased size.
TECHNICAL FEATURES
The Yamaha YZ 450 F 2020-2022 engine is identical in regard to it’s compactness and lightweight feel. Along with the new Athena Big Bore cylinder kit, it boasts of excellent torque and power performance, delivering over six hp more than the original cylinder kit.
To achieve these results, Athena engineers designed top-quality precision components:

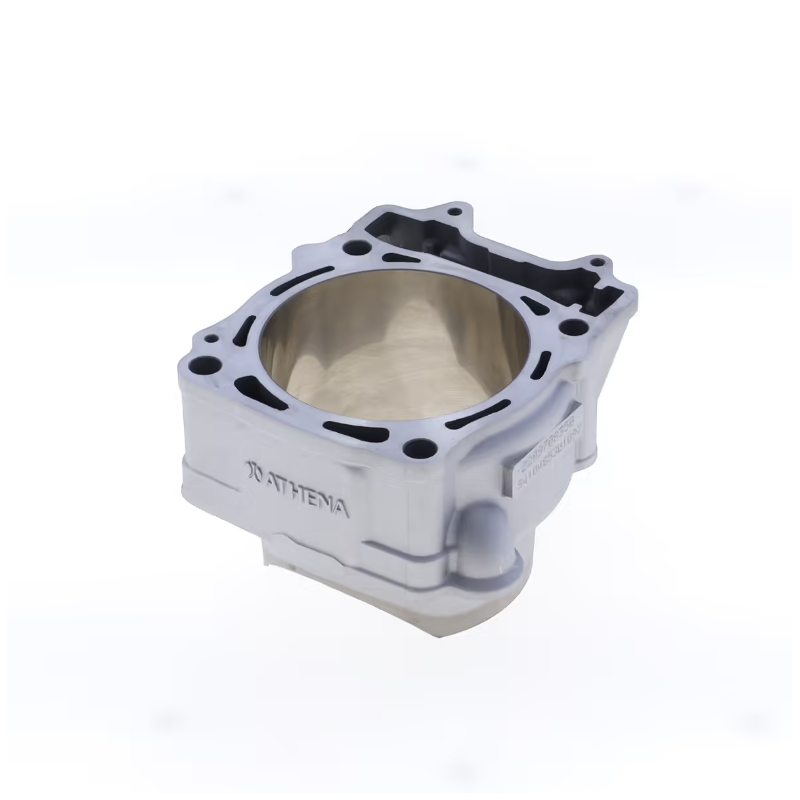

BIG BORE ALUMINUM CYLINDER
Besides modifying the cylinder following Yamaha’s overhaul of the YZ 450 F engines after 2020, which changed the shape and inclination of the cylinder along with the oil passages, Athena engineers adjusted the machining to deliver a significant increase in the bore to Ø102 mm.
Despite the increased size, the R&D department has designed this kit without having to bore the crankcases and with no additional machining required.
Produced by gravity casting and a heat treat process, designed to improve its mechanical characteristics, the Athena cylinder ensures maximum resistance even at the highest temperatures. The liner is designed to ensure a premium smooth finish lasting a lifetime, due to a special coating in nickel and silicon carbides.

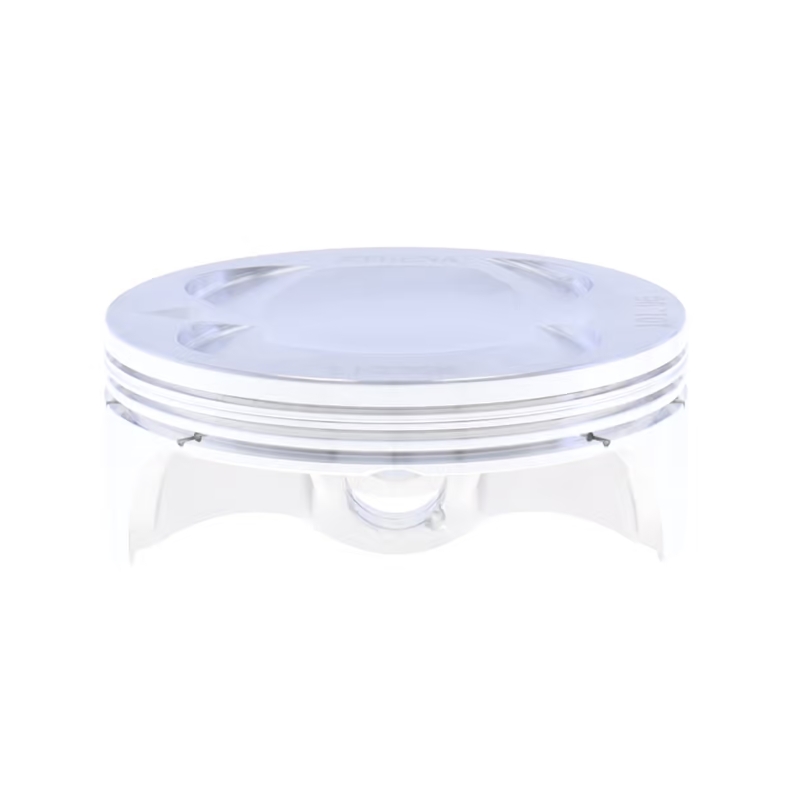

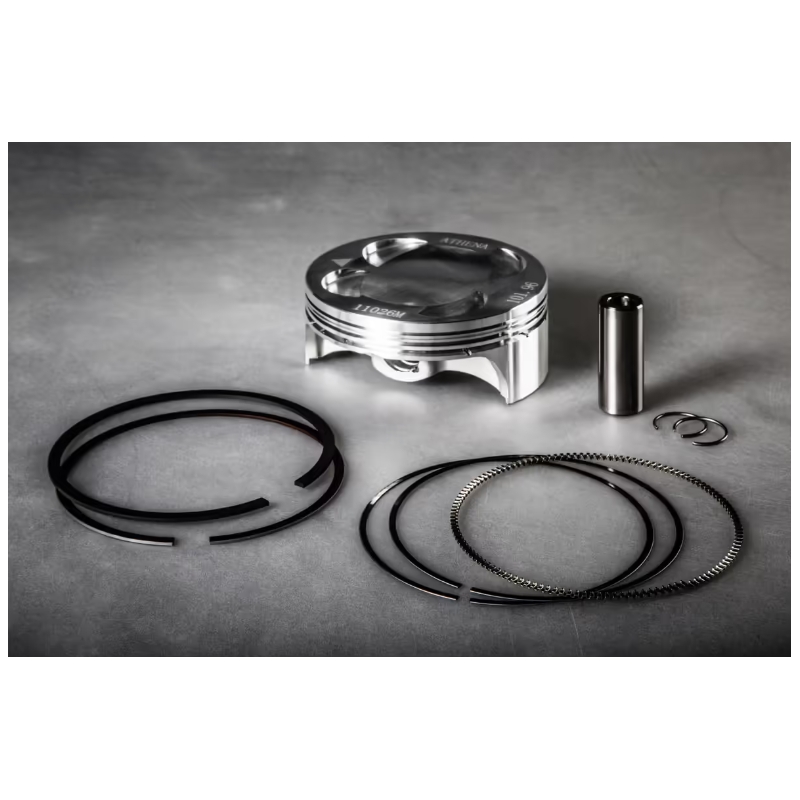

HIGH-QUALITY FORGED PISTON
Designed by Athena engineers, who studied the cylinder and created a system that outperforms the original. The piston delivers a superior power explosion at low to medium revs and at high engine speeds. The results, which also showed a marked increase in torque and compression ratio, came from bench and track tests.
Manufactured by reverse extrusion, using high-precision technology, this forged piston delivers ideal flow and features polished profiles for perfect front flame amplification.
The segments provide an optimized tangential load for a correct balance between lubrication and sealing, while the piston pin comes in high-quality alloy steel for maximum resistance.
ITALIAN-MADE GASKET SET
The kit contains the gaskets required to install the cylinder kit, including the cylinder head gasket and base gasket, redesigned by Athena engineers to fit the new Yamaha cylinder oil passages.
The rubber-coated metal base gasket features silicon creasing in critical areas on its surface that R&D engineers identified during the design phase. The creasing is near the crankcase joints and is ideal for preventing liquid leakage.
In contrast, the MLS (Multi-Layer Steel gasket) head gasket is constructed with three blades: the outer blades are in rubberized sheet metal, while the central one is in AISI301 stainless steel to withstand high levels of compression.
ATTENTION! All Athena products must be used in compliance with the specific national regulations of the member state where it is being marketed or sold. Athena declines all responsibility for any improper use.
